光電開關
ITR9909 億光直插反射式光電開關
更新時間??2025-06-04 11:12 閱讀
Product | Size (LxWxHmm) | VF_ Typ (V) | VF _Max (V) | VCE(SAT)_Max(V) | lc(on)_Min (mA) | Lceo_Max (nA) | Gap Distance（nm） |
ITR1203DT50A/TB | 7.5x2.6x6.3 | 1.18 | 1.4 | 0.4 | 0.25 | 100 | 5 |
ITR1205ST11A/TR | 3.1x2x2.7 | 1.2 | 1.5 | 0.4 | 0.15 | 100 | 1.1 |
ITR8102 | 24.4x6x10.4 | 1.2 | 1.5 | 0.4 | 0.9 | 100 | 3.1 |
ITR8104 | 18.1x6x10.5 | 1.2 | 1.5 | 0.4 | 0.9 | 100 | 3.1 |
ITR8105 | 9.6x5.6x9 | 1.2 | 1.6 | 0.4 | 0.9 | 100 | 2.6 |
ITR8402-F-A | 14.0x6x11.6 | 1.2 | 1.5 | 0.4 | 0.5 | 100 | 6 |

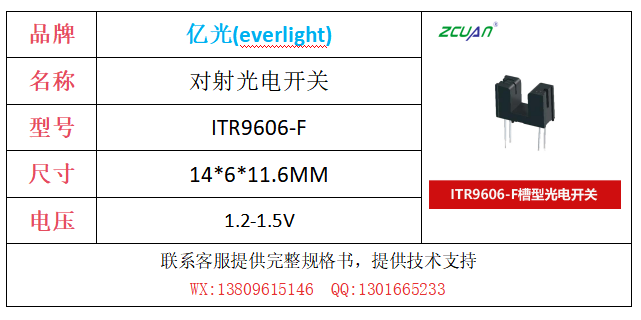

ITR9606-F | 14x6x10 | 1.2 | 1.5 | 0.4 | 0.5 | 100 | 5 |
TR9608-F | 13x6x10 | 1.2 | 1.5 | 0.4 | 0.5 | 100 | 5 |
ITR9707 | 12.8x6.4x6.9 | 1.2 | 1.5 | 0.4 | 0.5 | 100 | 5.2 |
